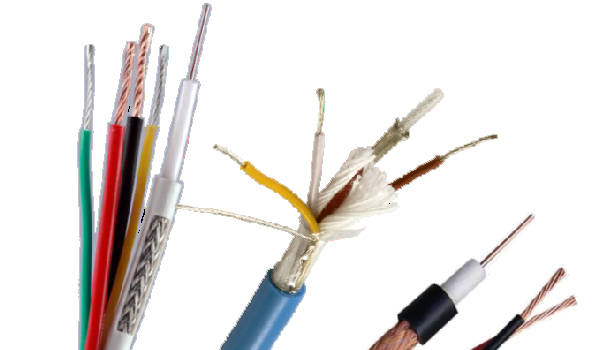

RADILITE CCTV Camera Cables

Flexibility, safety, security and a high-quality performance Designed keeping the market standards in mind with all the parameters confining between the industrial ranges, the CCTV cables from RADILITE are the most advanced you'll ever find. This bunch of wires is an amalgamation of safety and reliability combines with longevity. These wires are also non-toxic, fire resistant and fire retardant. Made by India's leading wire manufacturers, they outperform any other product available in the market. RADILITE CCTV Cables can be used in multiple applications in different locations according to the need. High security places such as malls, offices, roads etc. can be equipped with these wires when installing the CCTV camera for a smooth and long operation. Some of the most heinous crimes are usually recorded on CCTVs and we understand their importance and thus, invest a lot of time in developing them with utmost precision. Pick out what you want from the range of CCTV cables on the RADILITE Shop online and get it delivered to your home.

Salient Features

99.97 % pure Copper : We use 99.97 % pure electrolytic grade copper.

HRFR grade PVC : Heat resistant fire retardant grade PVC ensures completeprotection from fire at higher tempratures.

22+ lab test passed : All our cables undergo through 22+ lab tests as per IS:694

Saves electricity : Lower conductor resistance of our cables ensures electricity savengs.

High Current capacity : RADILITE cables have high current capacity due its 99.97 % copper purity

High temperature index : Heat resistance property of our cable ensures temperature index of 120 deg C.

Construction

Screened Core for Video signal

Conductor: The central conductor is made of fine wires tin coated electrolytic grade copper

Insulation: The insulation provided over the conductor is with high dielectric strength and low capacitance

Screen: Annealed tin coated copper 85% coverage approx.

Sheath: Black or White coloured PVC.

*Packing is available in 90 metre.

Colours available: White or Black.

Power Cores

Conductor: The central conductor is made of fine wires tin coated electrolytic grade copper.

Insulation: The insulation provided over the conductor is of PVC with high dielectric strength

Separator: PETP tape

Sheath: PVC

Cable Colour: White. Black with UV resistance to ASTM G 154

Application

These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance. This cable is offered in two variants viz., 4+1 and 3+1 CCTV Camera cable.

Cable type Cable size (sq.mm.) Nominal cable diameter (mm.) Power core colour
CCTV cable 4+1 4C +1C x 0.25 6.80 RD, YL, BK, GN
CCTV cable 3+1 3C +1C x 0.25 6.80 RD, YL, BL

Cross – Sectional View of RADILITE CCTV Camera Cables:
